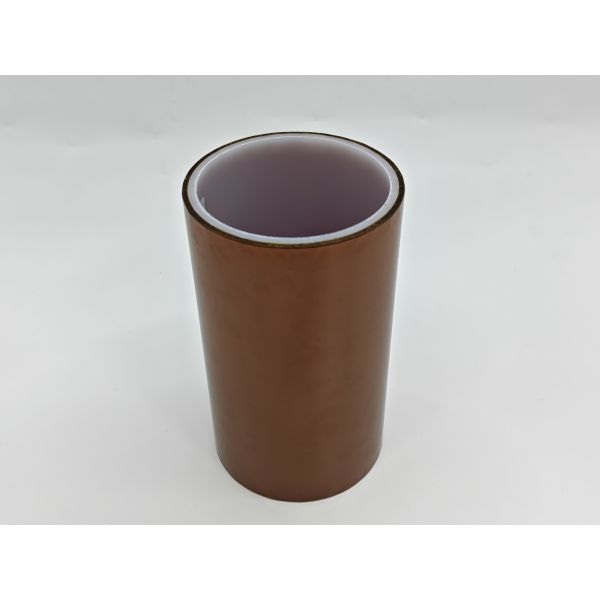

50μm High-temperature Polyimide Tape
Description
The KX2525 Series is a 50μm high heat polyimide (Kapton) tape coated with silicone adhesive, designed for extreme temperature applications up to 260°C for 30 minutes. This gold finger tape offers excellent adhesion strength over 600g, low electrolysis, and outstanding resistance to alcohol, acids, and alkalis. Its clean removability allows for repositioning and reuse without leaving any residue, making it a reliable choice for demanding industrial environments.
Silicone adhesive Kapton (PI) tape offers excellent heat resistance, good conformability, solvent resistance, re-peelable without residue, acid and alkali resistance. It features high insulation, anti-static and flame-retardant options. Short-term heat resistant to 300℃, long-term to 260℃, ideal for high-temperature electronic applications.
Common applications include PCB gold finger protection during soldering, slot insulation for motors and transformers, lithium battery electrode bundling, and high-temperature masking for painting or sandblasting.
Applications
- Protect gold fingers during PCB & SMT soldering processes
- Motor slot insulation, phase insulation and gaskets
- Wrapping for coils and cables
- Solder mask protection for circuit boards
- Bundling for lithium-ion battery manufacturing
- High temperature and corrosion resistance applications
Structure
| NO |
Layer/Material |
Remarks |
| 1 |
structure |
(PI)Kpton |
Polyimide Film |
| 2 |
Silicone |
|
Physical Parameters
| Item |
Specification |
| Thickness |
50μm±5μm |
| Adhesive Thickness |
25μm±5μm |
| Standard Width |
500mm; customizable: 640mm, 1000mm |
|
Adhesion Strength
|
600g±200g/25mm(180°)
|
| Color |
Amber |
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanyifeng) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
FAQ
-
What is the long-term and short-term heat resistance?
Short-term to 300℃, long-term to 260℃.
-
What colors are available?
Amber (golden) and black.
-
Can you provide anti-static and flame-retardant versions?
Yes, both are available.
-
Is this tape residue-free after peeling?
Yes, it’s re-peelable and leaves no residue.
-
What widths can you supply?
Standard 500mm, customizable 640mm and 1000mm.
-
What are the main applications?
PCB/SMT protection, motor insulation, coil wrapping, battery bundling, etc.
